Key Features
MPN: AP1TBAS2280P4-1
Model: AS2280P4
Interface: PCIe Gen3x4
3D TLC NAND Flash
Up to 5000 MB/s Super-Speed
Dedicated Heat Sink for Better Cooling
Key Features | |
Capacity | 1TB |
Flash Type | NAND Flash (3D TLC) |
Interface | PCIe Gen3x4 Compliant with NVMe 1.3 |
Sequential R/W | Read: up to 5000 MB/s Write: up to 4400 MB/s |
MTBF | 1,500,000 hours |
Others | NAND Flash: 3D TLC IOPs (4K Random Write): Up to 750K IOPs ECC Support: Up to 72bit/1KB Low Power Consumption (Active/Idle): 275/80mA Humidity: 5%~95% Vibration: 5~800HZ/3.13G |
Physical Specification | |
Dimension | (L)80 x (W)22 x (H)1.35mm |
Weight | 8.3g |
Temperature | |
Operating Temperature | 0℃ ~ 70℃ |
Storage Temperature | -40°C ~ +80°C |
Shock resistance | 1500G/0.5 msec |
Warranty | |
Manufacturing Warranty | 3 Years |

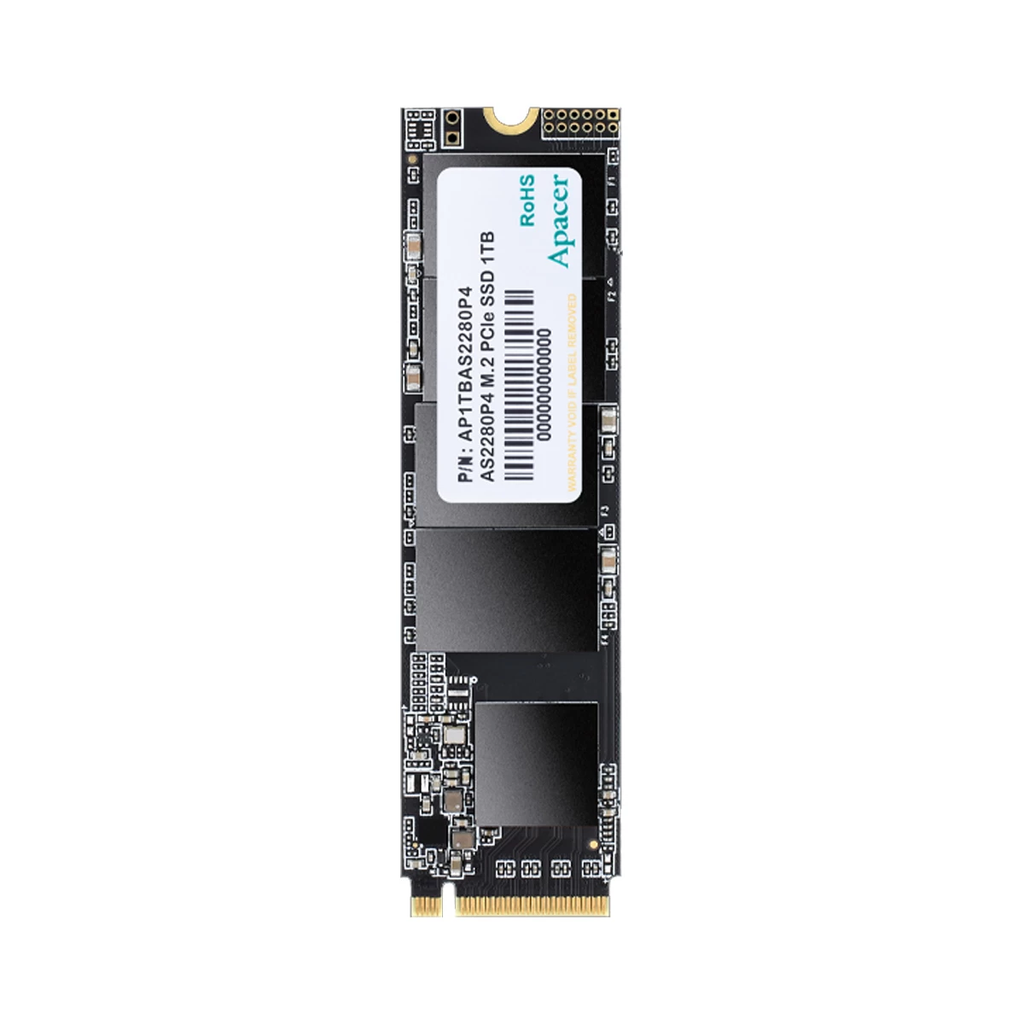

The Apacer AS2280P4 SSD is designed with PCIe connector pinouts. It provides full compliance with the latest PCIe Gen4x4 interface specifications and conforms to NVMe requirements. It not only delivers exceptional performance of nearly 10 times faster than a SATA SSD and power efficiency but is also fully compatible with PCIe 3.0. This SSD provides up to 5000+ MB/s reading and 4400+ MB/s writing speeds. It is built with 3D TLC NAND Flash. It offers a capacity of 1TB and performs higher efficiency and reliability. It supports over-provisioning technology to extend a longer operating lifetime by effectively executing garbage collection, wear-leveling, and bad block management. The built-in protection technology not only ensures users of a perfect high-speed experience but also data integrity and stability. It features a dedicated Heat Sink for Better Cooling. The Apacer AS2280Q4 SSD supports a Thermal Throttling mechanism to dynamically adjust frequency scaling to enhance data reliability and provide sustained performance while overheating. Furthermore, with E2E (End-to-End) Data Protection to extend error control, AS2280Q4 ensures superior data security, integrity, and a longer SSD lifetime. It has 3 years of warranty.
