Price:
29,500.00 ৳

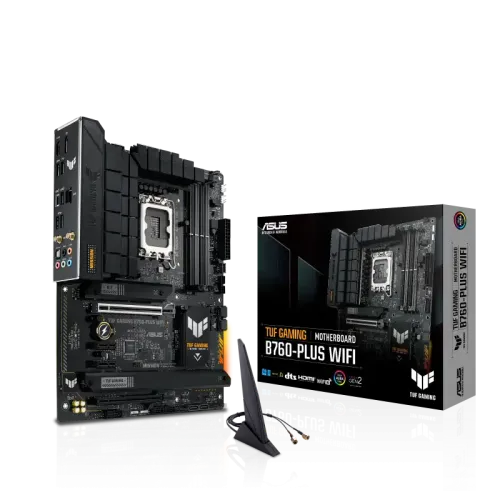

Asus TUF GAMING B760-PLUS WIFI DDR5 ATX Motherboard
Key Features
Model: TUF GAMING B760-PLUS WIFI DDR5
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 128GB, DDR5
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
Specification
Basic Information | |
| Supported CPU | Intel Socket LGA1700 for 14th gen 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF outport - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. |
| M.2 Socket | Total supports 3 x M.2 slots |
Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | Max. 128GB |
Graphics | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports | |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
Others | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Warranty Information | |
| Manufacturing Warranty | 3 years warranty |
Description
Asus TUF GAMING B760-PLUS WIFI DDR5 ATX Motherboard
The Asus TUF GAMING B760-PLUS WIFI DDR5 14th & 13th Gen ATX Motherboard combines all of the necessary components of the newest Intel CPUs with game-ready features and proven endurance. This motherboard exceeds expectations with rock-solid performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model features an embossed nameplate and geometric design elements to symbolize the reliability and stability that is synonymous with the TUF GAMING line. TUF GAMING B760 motherboards have versatile tools for tuning every area of your system, allowing expert performance modifications to match the way you play. The Power Saving feature has several options that allow you to simply control power use and maximize energy savings. You may enable a CPU power restriction, dim the Aura lighting, and change the fan profile to power-saving mode. You can also enable or disable Microsoft Windows' Power Saving strategy. The TUF GAMING B760-PLUS WIFI is the ideal foundation for your next Intel battle rig, with enhanced power supply and complete cooling choices to run the newest Intel CPUs, as well as compatibility for DDR5 memory and PCIe 4.0 storages. The TUF GAMING line is simple to set up for all builders. TUF GAMING Alliance compatibility is provided, while Armoury Crate includes Fan Xpert 4, hardware information, Two-Way AI Noise Cancelation, RGB choices, and peripheral settings. This platform includes simple tools for creating and optimizing dream setups. TUF GAMING Alliance is a cooperation between ASUS and reputable PC component manufacturers to assure compatibility across a wide variety of parts, including PC cases, power supplies, CPU coolers, memory kits, and more. The TUF GAMING Alliance will grow even stronger as new collaborations and components are added regularly. The Asus TUF GAMING B760 motherboards provide a feature-rich high-performance gaming solution, including ultrafast networking for smoother online gameplay, exquisite audio with positional cues for FPS gaming, and integrated RGB lighting that syncs with connected devices to customize your gaming environment.
