Price:
25,300.00 ৳

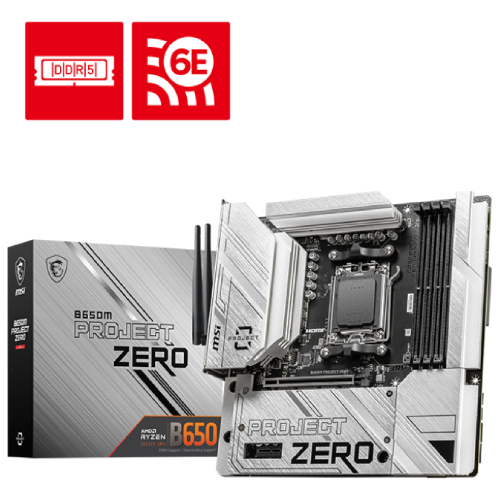

MSI MOTHERBOARD B650M PROJECT ZERO AM5
Key Features
Model: B650M PROJECT ZERO
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 7600+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Specification
Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
Expansion Slots | |
| PCI | 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 2x M.2 |
Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Maximum Memory | 128GB |
Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz |
Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | Audio Connectors |
| Internal I/O Ports | INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C) |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
The MSI B650M PROJECT ZERO AM5 is a micro-ATX motherboard intended to fulfill the needs of professional and multimedia users. It is designed specifically for AMD Ryzen 8000/7000 Series Desktop Processors and supports DDR5 memory with a maximum overclocking frequency of 7600+ MHz, providing effective multitasking and data processing. Its superior thermal technology, which includes Extended Heatsink Design and M.2 Shield Frozr, avoids thermal throttling and ensures peak performance under demanding workloads. The motherboard enhances the network experience with 2.5G LAN and AMD Wi-Fi 6E, providing safe, stable, and fast connectivity for professional jobs and multimedia applications. Lightning M.2 technology for PCIe Gen 4 SSD performance, Lightning USB 20G with a 3.2 Gen 2x2 connector for 20Gbps data transfer speeds, and Audio Boost for studio-quality sound. The back-connect style improves aesthetics while simplifying wire management. Memory Boost technology assures pure data signals for peak performance, stability, and compatibility, while the Lightning Gen4 Solution provides up to 64GB/s of bandwidth for maximum transfer speed. The M.2 Shield Frozr thermal device protects M.2 SSDs from throttling and improves storage performance. The motherboard has Wi-Fi 6E, which supports the 6GHz band, MU-MIMO, and BSS color technology, allowing wireless speeds of up to 2400Mbps. With a premium 2.5G LAN, it provides an excellent network experience. In summary, the MSI B650M PROJECT ZERO AM5 is a feature-rich platform that combines sophisticated technology and luxury materials to provide a high-performance computing experience customized to the demands of demanding users, whether they are doing professional activities or enjoying entertainment.
