Price:
13,500.00 ৳
MSI MOTHERBOARD PRO B760M-E DDR5
Key Features
Model: B760M-E
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN
Specification
Basic Information | |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 200mmx236.16mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 1x M.2 |
Memory | |
| Type | DDR5 |
| Slots | 2x DIMM |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz |
| Maximum Memory | 96GB |
Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA |
Connector & Ports | |
| HDMI | 1x HDMI 1.4 |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 1x RGB LED connector(JRGB) |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

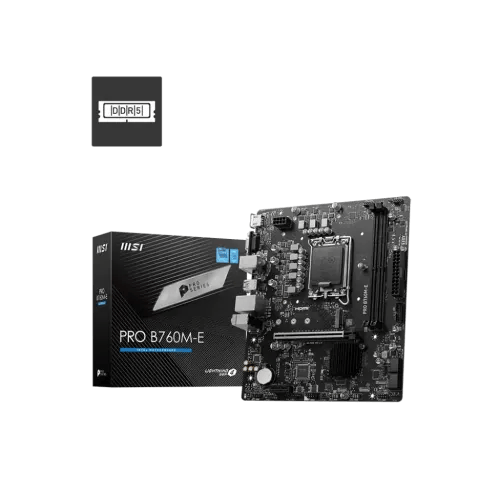

MSI PRO B760M-E DDR5 m-ATX Motherboard
The MSI PRO B760M-E DDR5 m-ATX Motherboard will give an experience of next-level computing performance. This powerful motherboard is made to handle the needs of modern computing. This motherboard is designed to accommodate Pentium Gold, Celeron, and 14th, 13th, and 12th generation Core CPUs with an LGA 1700 socket. It offers a flexible foundation for a variety of computer activities, including demanding programs and gaming. The B760M-E has enhanced memory capabilities thanks to its support for DDR5 memory, which has two DDR5 slots and a maximum memory capacity of 96GB. Because of the outstanding data transmission rates and responsiveness guaranteed by this, resource-intensive programs and multitasking are made possible. The primary characteristic of the B760M-E is connectivity. The motherboard has one HDMI connector, which allows for excellent graphics output and clear display graphics whether you're working on artistic projects or playing intense video games. Realtek RTL8111H Gigabit LAN is included to provide dependable and fast networking that can handle the demands of data transfer and online activities. The 7.1-Channel High Definition Audio offers immersive and crystal-clear sound quality, which will be appreciated by audio fans. The B760M-E's audio features improve your whole experience whether you're playing games, viewing movies, or having a video conference. With its design catering to both enthusiasts and pros, the MSI PRO B760M-E DDR5 mATX Motherboard offers a strong base for your computer setup by integrating performance, connection, and audio features. With this feature-rich motherboard that achieves the ideal balance between dependability and high-performance capabilities, you can enhance your computer experience.
