Price:
39,000.00 ৳

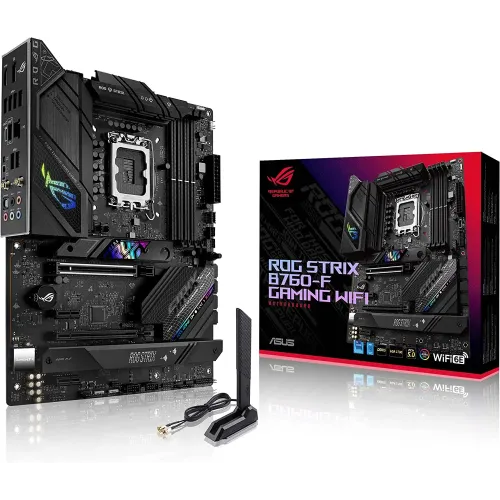

ASUS ROG STRIX B760-F GAMING WIFI MOTHERBOARD,12-13TH GEN DDR5,
Key Features
Model: ROG STRIX B760-F GAMING WIFI
Supported CPU: 14th/13th/12th Gen Intel Core Processors (LGA1700)
Supported RAM: 4 x DIMM, Max. 128GB, DDR5
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 6E
Specification
Basic Information | |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0x16 slot (supports x16 mode) Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | 128GB |
Graphics | |
| Graphics | 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports | |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 xThunderbolt (USB4) header Back Panel I/O Ports Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
Others | |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
ASUS ROG STRIX B760-F GAMING WIFI DDR5 Motherboard
The ASUS ROG STRIX B760-F GAMING WIFI DDR5 14th Gen & 13th Gen Motherboard serves as the foundation for your gaming-focused Computer. This 14th Gen Motherboard, built on Intel's 12th and 13th Generation CPUs, delivers greater system-wide capabilities by allowing you to add a diverse variety of components, making it perfect for gaming fans. Based on the Intel B760 chipset, the system includes an LGA1700 socket, four dual-channel DDR5 RAM slots, four SATA III ports, and three PCIe 4.0 M.2 interfaces, all of which work together to improve system performance. With one PCIe 5.0 x16, one PCIe 3.0 x16 (in x4 mode), and two PCIe 3.0 x1 slots, you can connect a choice of graphics and utility cards. USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports support a variety of peripherals, including keyboards, mice, external drives, and more. Bluetooth 5.3 technology allows items such as controllers and headphones to communicate wirelessly. Wi-Fi 6E (802.11ax) connection enables wireless networking or usage of the 2.5 Gigabit Ethernet connector, both of which are suited for competitive online gaming. Furthermore, the ROG STRIX B760-F GAMING WIFI comes pre-installed with Windows 10 and 11 (64-bit). You have USB 3.2 Gen 1 and Gen 2 connections, which are equipped with numerous connectors and headers designed to deliver power to external devices and have data transfer speeds of up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2x2 supports data transmission rates of up to 20 Gb/s, allowing you to employ modern devices such as audio and video interfaces.
