Price:
17,800.00 ৳

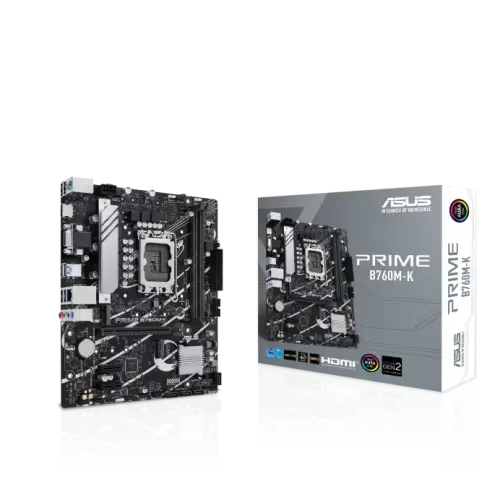

Asus PRIME B760M-K mATX Motherboard
Key Features
Model: PRIME B760M-K
Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DDR5, Max. 96GB 8000(OC)
Graphics Output: 1 x VGA port, 1 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet
Specification
Basic Information | |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 64GB |
Graphics | |
| Graphics | 1 x VGA port 1 x HDMI port |
Connector & Ports | |
| HDMI | 1 x HDMI port |
| VGA (s) | 1 x VGA port |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Warranty Information | |
| Manufacturing Warranty | 3 years warranty |
Description
Asus PRIME B760M-K mATX Motherboard
The Asus PRIME B760M-K 14th 13th & 12th Gen mATX Motherboard is a cutting-edge motherboard designed for high-performance computing. With support for Intel's latest 14th, 13th and 12th Gen processors and an LGA 1700 socket, this motherboard is ready to power your gaming rig or workstation with unparalleled speed and efficiency. One of the standout features of this motherboard is its ultrafast connectivity options. With PCIe 4.0 support, two M.2 slots for lightning-fast storage, Realtek 2.5Gb Ethernet for high-speed networking, and Wi-Fi 6 for wireless connectivity, you can expect blazing-fast data transfer speeds and lag-free online gaming. The 14th Gen Motherboard also boasts a comprehensive cooling solution, featuring VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ technology. This ensures that your system stays cool even during intense gaming sessions or heavy workloads, allowing for optimal performance and stability. To enhance memory overclocking capabilities, this motherboard features ASUS OptiMem II technology, which carefully routes traces and vias and optimizes ground layers to preserve signal integrity. This results in improved memory overclocking potential, allowing you to push your system to its limits. This Asus PRIME B760M-K comes with Aura Sync RGB lighting, allowing you to customize the aesthetics of your build with onboard Addressable Gen 2 headers and an Aura RGB header for RGB LED strips. These can be easily synced with other Aura Sync-capable hardware for a cohesive and synchronized RGB lighting setup. This motherboard offers rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C ports, providing versatile and high-speed connectivity options for peripherals and devices. the Asus PRIME B760M-K 12th & 13th Gen mATX Motherboard is a feature-rich and powerful motherboard that provides excellent performance, connectivity, and cooling capabilities for your PC build. Whether you're a gamer, content creator, or professional, this motherboard is designed to meet your high-performance computing needs. With its support for Intel's latest processors, PCIe 4.0, M.2 storage, Realtek 2.5Gb Ethernet, Wi-Fi 6, Aura Sync RGB lighting, and comprehensive cooling solution, it's a top choice for those seeking a high-quality motherboard for their next PC build.
