Price:
9,500.00 ৳

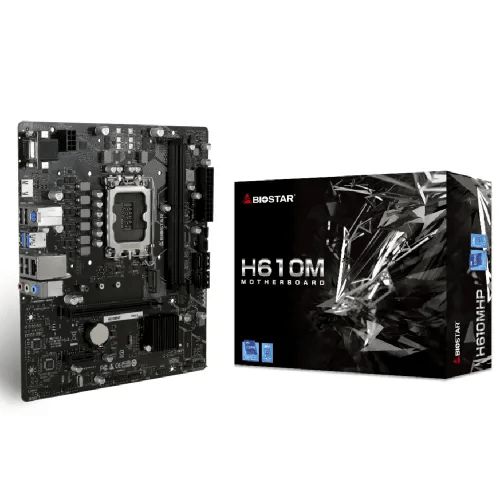

BIOSTAR MOTHERBOARD H610MHP, FOR 12 & 13TH GEN PROCESSOR SOCKET
Key Features
Model: H610MHP
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DIMM, DDR4 3200 up to 64 GB
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: 1 x M.2 Slot, Intel I219V
Specification
Basic Information | |
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package |
| Chipset | Intel H610 |
| Form Factor | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L ) |
| Audio | ALC897 7.1 Channels, High Definition Audio |
Expansion Slots | |
| PCI | 1 x PCIe 4.0 x16 Slot (x16 mode) 1 x PCIe 3.0 x1 Slot |
| M.2 Socket | 1 x M.2 socket |
Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Up to 64 GB |
Graphics | |
| Graphics | Supports DX12 Supports HDCP |
Connector & Ports | |
| HDMI | 1 x HDMI |
| VGA (s) | 1 x VGA Port |
| USB (s) | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
| LAN Port (s) | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Supported Storage | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel H610 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s) |
| Audio | 3 x Audio Jack |
| Internal I/O Ports | 4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header |
| TPM (Trusted Platform Module ) | 1 x TPM Header |
Others | |
| Bundled Software | BullGuard |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
BIOSTAR H610MHP Micro ATX Motherboard
The BIOSTAR H610MHP Micro ATX motherboard is a feature-packed and versatile motherboard designed to meet the demands of both 14th, 13th, and 12th-generation Intel Core processors. With its cutting-edge Intel H610 single-chip architecture, this motherboard provides an excellent platform for building a powerful and responsive system. This motherboard is built to support a wide range of Intel processors, including 12th, 13th, and 14th generation Intel Core processors, ensuring that you can take advantage of the latest technology and performance improvements. The BIOSTAR H610MHP supports up to 64GB of DDR4 memory with speeds ranging from 1866MHz to 3200MHz. This allows for smooth multitasking and efficient data handling for various applications. With support for PCIe 4.0, this motherboard offers faster data transfer speeds and enhanced graphics performance, making it ideal for gaming and content creation. This motherboard comes equipped with a PCIe M.2 slot running at 32Gb/s, ensuring that your NVMe SSD can operate at its full potential. This high-speed storage solution significantly improves system responsiveness and reduces load times for applications and games. The motherboard features an HDMI port that supports 4K2K resolution, providing crisp and vibrant visuals for your 4K displays and monitors. This is perfect for enjoying 4K content or gaming at higher resolutions. With USB 3.2 Gen1 support, you can connect high-speed external devices and storage solutions. This ensures quick data transfer, reducing wait times when copying or accessing large files. The BIOSTAR H610MHP Micro ATX motherboard combines performance, expandability, and modern features, making it an excellent choice for users looking to build a system that can handle a wide range of tasks, from gaming to content creation. Its compatibility with multiple Intel processor generations, high-speed storage options, and 4K display support ensures you can stay on the cutting edge of technology.
