Price:
7,000.00 ৳

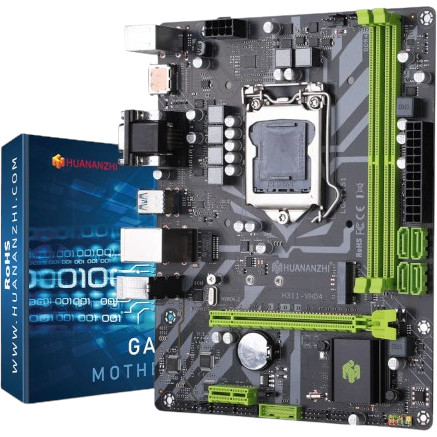

HUANANZHI MOTHERBOARD H311 DDR4
Key Features
Item: Motherboard
Model: Huananzhi H311-VHD4
Motherboard Type: Standard
Chipset: Intel 100 Series Chipset
Supported Processors: Intel 6th / 7th / 8th / 9th Gen
Front Side Bus Support: Dual Channels DDR4 2666/2400/2133/1866MHz
Max Memory: 32GB
Specification
| Item | Motherboard |
|---|
| Model | Huananzhi H311-VHD4 |
| Motherboard Type | Standard |
| Chipset | Intel 100 Series Chipset |
| Supported Processors | Intel 6th / 7th / 8th / 9th Gen |
| Front Side Bus | Support Dual Channels DDR4 2666/2400/2133/1866MHz |
| Max Memory | 32GB |
| CPU Socket Type | Intel LGA1151 Platform |
| Storage Interface | 4 x SATA 3.0 6Gbps |
| Expansion Slots | 1 x PCI Express 3.0 x16, 1 x PCI Express 2.0 x1 |
| Expansion Interface | 1 x M.2 2280 NVME PCIe X4 2.0 |
| FAN Pin | 1 x CPU Fan Pin, 2 x SYS Fan Pin |
| Rear Panel Interface | 2 x USB3.0, 2 x USB2.0, 1 x VGA, 1 x HDMI 2.0, 1 x DP 1.2, 1 x Network Card, 1 x 3-Hole Audio, 1 x JVGA PIN |
| Front Panel Interface | 2 x USB2.0 PIN, 1 x USB3.0 PIN, 1 x Front Audio PIN, 1 x Debug PIN, 1 x JBAT BIOS PIN, 1 x COM PIN, 1 x Power On/Restart PIN |
| Supported System | Windows 7, Windows 10, Windows 11 |
| Storage Devices | SATA 6Gb/s: 4 x SATA 6Gb/s, 1 x M.2 PCIe 2.0 x4 |
| BIOS | AMI UEFI BIOS |
| Power Supply | 6-Phase Power Supply |
| PCB Layers | 4-Layer PCB |
| Dimension | 215 x 170mm (M-ATX) |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Gigabit Network Card |
| Power Interface | 24PIN + 8PIN |
