Price:
13,500.00 ৳

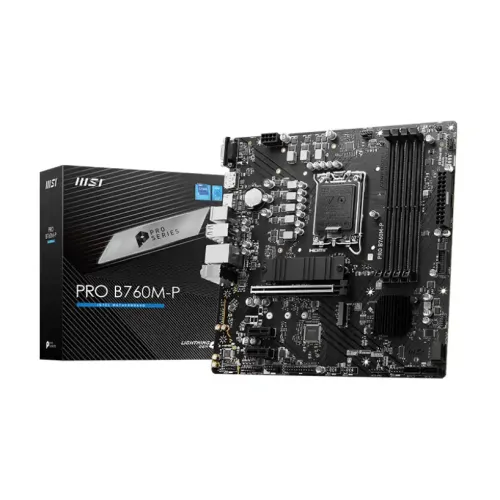

MSI MOTHERBOARD B760M-P
Key Features
Model: PRO B760M-P
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 6800+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN
Specification
Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 192GB |
Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| VGA (s) | 1x VGA |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 4x EZ Debug LED |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
MSI PRO B760M-P DDR5 mATX Motherboard
The MSI PRO B760M-P Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and two M.2 slots allowing you to take advantage of the full power of 14th 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-Bit).
Enhanced Power Design
The MSI PRO B760M-P motherboard is designed for gamers and enthusiasts, with a 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost technology, which boosts the performance of your multi-core Intel processor. Overclock your CPU with ease thanks to MSI Game Boost technology, which allows for 1-second rapid overclocking. The Digital Power Design, Overvoltage Protection, Load-Line Calibration, Double Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to provide proper electrical management through your system to stabilize your system, especially under high loads.
Premium Thermal Solution
The MSI PRO B760M-P Motherboard features Extended Heatsink Design and M.2 Shield Frozr and is designed for high-performance systems and continuous operation. This motherboard's increased cooling capabilities will keep your components working at optimal temperatures. M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling all work together to keep your components cool even while under high loads when gaming or generating content.
High-Quality PCB for Enhanced Protection
MSI PRO B760M-P 13th Gen Motherboard features a PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper that allows the motherboard to easily withstand overclocking while improving heat dissipation and system reliability. The MSI PCI Express Steel Armor slot is soldered to the motherboard to handle the weight of large graphics cards and avoid GPU droop, which can damage PCIe slots. The grounding layer around the mounting holes is doubled for double ESD protection, preventing static discharge spikes from damaging the motherboard.
