Price:
7,500.00 ৳

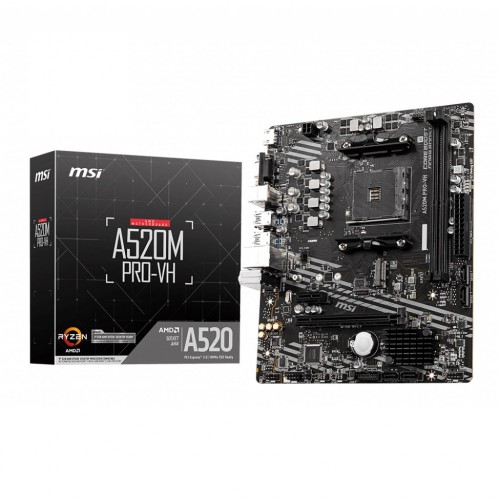

MSI AMD MOTHERBOARD A520M PRO VH
Key Features
Model: A520M PRO-VH
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 4600(OC) MHz
Core Boost and DDR4 Boost
2oz Thickened Copper PCB
Specification
Basic Information | |
| Supported CPU | AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD A520 Chipset |
| Form Factor | mATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 1x PCIe 3.0 x1 slot 1x PCIe 3.0 x16 slot |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) |
Memory | |
| Type | Dual-channel memory architecture |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Maximum Memory | 64GB |
Graphics | |
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz |
| Max Shared Memory | 16GB |
Connector & Ports | |
| HDMI | 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz |
| VGA (s) | 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz |
| USB (s) | AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek RTL8111H LAN controller |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| Audio | 1x Front panel audio connector |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |
Description
MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard
MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4600(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe-based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center - A brand new software that integrates all MSI-exclusivMSI-exclusive tools with a user-friendly user interface. It has 3 years of warranty.
