Price:
5,000.00 ৳
General information | |
| Audio Chipset | Realtek Chip, ALC 6-channel audio |
| Back Panel I/O Ports | 1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 2 x USB 3.1 Gen 1 Ports(Blue) 4 x USB 2.0 Ports 3 x flexible audio jacks |
| Dimension | 215 x 170mm |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HD / VGA ports |
| INTERNAL I/O | 1 x USB 3.1 Gen 1 connector（19pin), supports 2*USB 3.1 Gen 1 ports, 1 x USB 2.0 connector， supports 2*USB 2.0 ports 4 x SATA 6Gb/s Ports 2 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector |
| LAN | Realtek Chip, 1 x 100M（Optional 1000M）Lan |
| Processor | Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Slots | 1 x PCIe x16 3.0/2.0 slot 1 x PCIe x16 2.0 slot |
| Storage | 1 x M.2 Socket, Supports 2260/2280 SSD 4 x SATA 6Gb/s Ports |
| USB | 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (2 at back panel, black, 2 at mid-board) |
Main Features | |
| Chipset | Intel H110 Chipset |
Memory Specifications | |
| Memory Type | DDR4 |
Warranty Information | |
| Warranty | 1 Year |

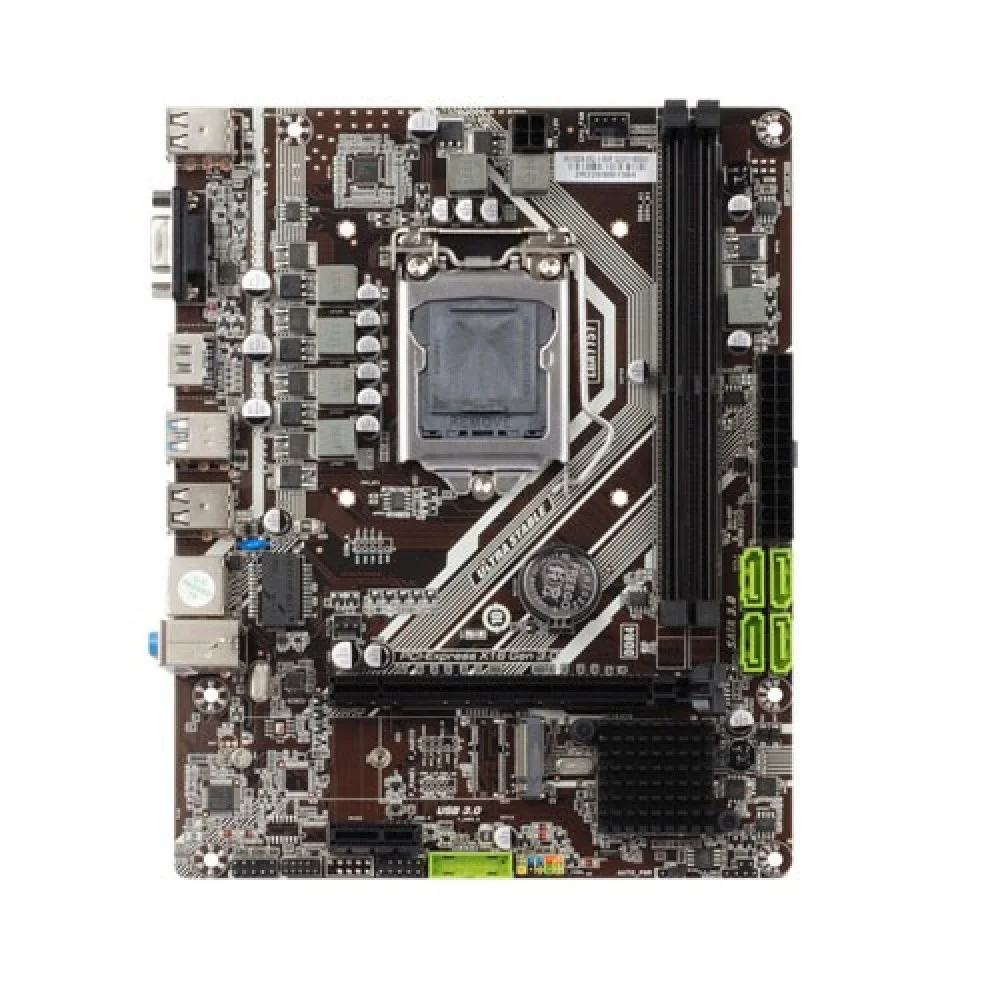

Esonic Intel H110DA1 DDR4 Motherboard
Esonic Intel H110DA1 DDR4 Motherboard is a versatile and reliable motherboard designed to support a wide range of Intel processors, making it an excellent choice for building or upgrading your desktop PC. With its feature-rich specifications and high-quality components, this motherboard offers a solid foundation for various computing needs. One of the standout features of this motherboard is its processor support. It is compatible with Intel Socket 1151 CPUs, spanning the 6th, 7th, 8th, and 9th Generation Core series, including Core i7, Core i5, Core i3, Pentium, and Celeron processors. This flexibility ensures that you can choose the CPU that best suits your performance requirements and budget. It also supports Intel's 14nm CPUs and Intel Turbo Boost Technology 2.0, enhancing overall system performance. Memory is a crucial aspect of any motherboard, and the Esonic H110DA1 doesn't disappoint. It supports up to 64GB of DDR4 RAM with a clock speed of 2133MHz, utilizing a dual-channel memory architecture. This provides ample memory capacity for multitasking and running demanding applications smoothly. The motherboard's chipset is the Intel H110, which provides stable and efficient operation. For graphics, it features an integrated Intel HD Graphics processor, along with support for multiple VGA outputs, including HD and VGA ports. This allows you to connect multiple displays for enhanced productivity or gaming experiences. In terms of expansion slots, the motherboard offers one PCIe x16 3.0/2.0 slot and one PCIe x16 2.0 slot, providing flexibility for adding dedicated graphics cards or other expansion cards. Additionally, it includes storage options such as an M.2 socket for high-speed SSDs and four SATA 6Gb/s ports for traditional hard drives or SSDs. Connectivity is well-covered with a Realtek LAN chip for networking and a Realtek ALC 6-channel audio chip for high-quality audio output.
