Price:
11,100.00 ৳

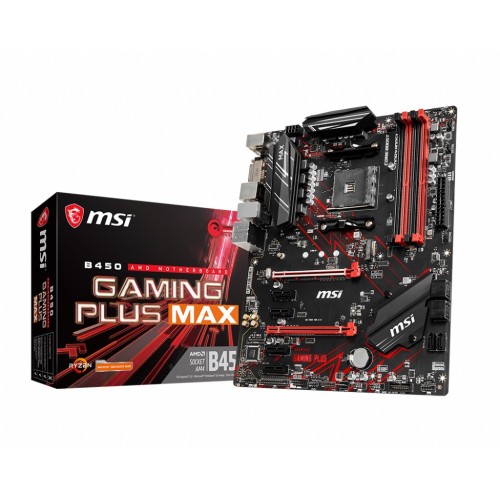

MSI MOTHER BOARD B450 GAMING PLUS MAX AMD RYZEN
Key Features
Model: MSI B450 GAMING PLUS MAX
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Lightning Fast Game experience
Supports DDR4, up to 4133(OC) MHz
Core Boost, DDR4 Boost, Audio Boost
Specification
Basic Information | |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Form Factor | ATX Form Factor |
| Audio | 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 4 x PCIe 2.0 x1 slots1 |
| M.2 Socket | - 1 x M.2 slot (Key M) |
Memory | |
| Type | DDR4 |
| Slots | 4 x DDR4 memory slots, support up to 64GB |
| Supported Memory | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| Maximum Memory | MAX MEMORY (GB): 64 |
Graphics | |
| Graphics | - 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hzz1 - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1 - Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors |
| Max Shared Memory | - Maximum shared memory of 2048 MB |
Connector & Ports | |
| HDMI | - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
| DVI-D (s) | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz |
| USB (s) | AMD B450 Chipset: - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU: - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| LAN Port (s) | - 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD CPU: 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices AMD B450 Chipset: 4 x SATA 6Gb/s ports |
| Audio | -7.1-Channel High Definition Audio |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
Others | |
| Bundled Software | - Support for Windows 10 64-bit - Support for Windows 7 64-bit - To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
Warranty Information | |
| Manufacturing Warranty | 03 years warranty |
Description
MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard
MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and DDR4 Memory, up to 4133(OC) MHz. You will get a Lightning Fast Game experience with TURBO M.2, AMD Turbo USB 3.2 GEN2, and StoreMI Technology. Here is added Core Boost with a premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability with Audio Boost that rewards your ears with studio grade sound quality for the most immersive gaming experience. Also, you simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card.
This AMD MSI motherboard is built with Flash BIOS Button, Gaming Device Port, LAN Port, AMD Turbo USB 3.2 Gen2, and Golden Audio Jacks. In this motherboard, the Core Boost supports more cores and provides better performance. Gaming heatsinks with Passion Red scheme for maximum cooling and performance, DDR4 Boost optimized traces and isolated memory circuitry, Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, Supports STORE MI. The PCI-E Steel Armor protects VGA cards against bending and EMI and PCI-E Steel Slot protect VGA cards against bending Audio Boost is built with the amplifier which optimizes gaming audio using the best components, with Nahimic3. MSI motherboards are designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. MSI motherboards are DIY FRIENDLY which features tons of convenient and smart designs, such as convenient pin-header keep-out zone, friendly SATA & USB location, and so on, so DIY users can pick and choose any gaming rig they want. For high performance, cooling is essential to sustain intense workloads. MSI motherboards feature a heavy-duty heatsink on the MOSFETs for reliable processor power delivery and numerous fan headers with full fan speed control letting builders tune their system cooling the way they like it. Its BIOS and Software complete your high-performance experience with an array of performance-enhancing software from MSI. This MSI AMD motherboards are designed with both device and physical compatibility in mind. Pin headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. This Exclusive MSI motherboard is built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immersive one and also deliver the highest sound quality through the use of premium-quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy the breathtaking, gaming-changing sound.
Each MSI motherboard is built based on a specific topic to match different flavors and tastes. The MSI also adopts the modern style to design the heatsink through huge surfaces and sleek but simple cuts to make the heatsink and appearance look ripped and powerful. In this motherboard, MSI Mystic Light provides a complete function to control the RGB light all around the ecosystem. Select the available colors from the palette to match your favorite and mood. This AMD motherboard also combines neutral colors, such as black, grey, and silver, as the main background, MSI motherboard can perfectly fit different RGB LED effects and strongly shows the gamer's tunes. The MSI B450 GAMING PLUS MAX Motherboard comes with 03 years of warranty.
