Price:
27,500.00 ৳
MSI MOTHER BOARD Z790-P WIFI DDR5 (MOT097)
Key Features
Model: PRO Z790-P
Supports 14th/13th/ 12th Gen Intel, Pentium Gold, and Celeron Processors for LGA 1700
Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
2.5G LAN with Wi-Fi 6E Solution
Specification
Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700 |
| Chipset | Intel Z790 Chipset |
| Form Factor | ATX Form Factor 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
Expansion Slots | |
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From the Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 4x M.2 slot |
Memory | |
| Type | DDR5 |
| Supported Memory | 4x DDR5, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 128GB |
Graphics | |
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz |
Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1.4 |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | LED FEATURE: 4x EZ Debug LED |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

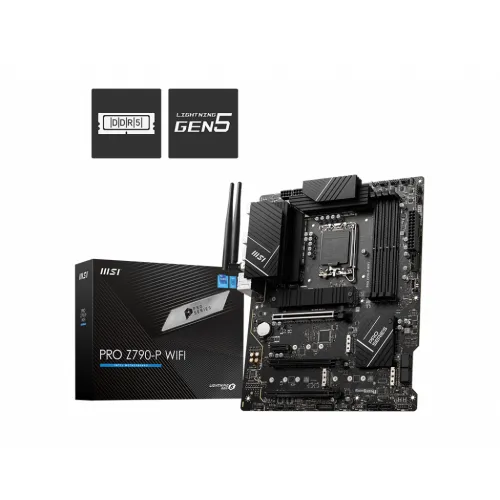

MSI PRO Z790-P WIFI DDR5 ATX Motherboard
The MSI PRO Z790-P WIFI ATX Motherboard is compatible with 14th/13th/12th Generation Intel Core, Pentium Gold, and Celeron CPUs in the LGA 1700 socket. It supports DDR5 memory, including dual channel DDR5 7000+MHz support (OC). 14+1+1 DRPS with 55A DrMOS, twin 8-pin CPU power connections, Core Boost, Memory Boost, Enhanced Power Design Extended heatsinks, MOSFET thermal pads rated at 7W/mK, extra choke thermal pads, and M.2 Shield Frozr are designed for high-performance systems and nonstop gaming. 6-layer PCB constructed with 2oz thicker copper and server-grade level material. This motherboard has Lightning Fast Gaming, PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. It contains anan Intel Turbo USB 3.2 Gen 2 controller, which offers an unbroken connection with better reliability and the quickest USB rates. 2.5G LAN solution with Wi-Fi 6E, a Professional and multimedia network solution that has been upgraded. Provides a safe, reliable, and fast network connection. For the most immersive gaming experience, reward your ears with studio-grade sound quality. The MSI PRO Z790-P WIFI DDR5 13th Gen ATX Motherboard comes with a 03-year warranty.
