Price:
1.00 ৳

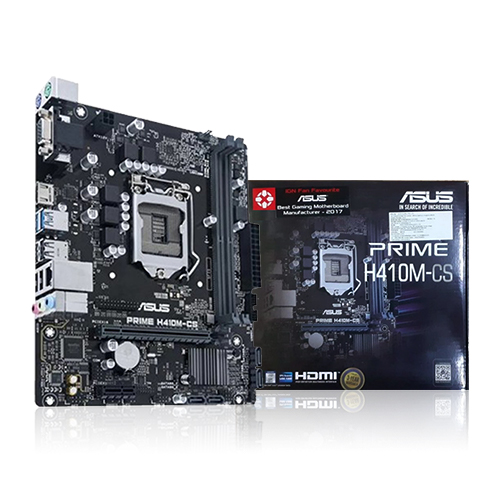

ASUS PRIME H410M-CS, MOTHERBOARD 10TH GEN,DDR4,HDMI,D-SUB,USB3.2, (MOT283)
Key Features
Model: Asus Prime H410M-CS
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
CHIPSET: Intel H410
LAN: Realtek RTL8111H
MEMORY: 2 x DIMM slots with Max. 64GB
Specification
Basic Information | |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch |
Expansion Slots | |
| PCI | No |
| M.2 Socket | No |
Memory | |
| Type | Non-ECC, Un-buffered Memory |
| Slots | 2 x DIMM |
| Supported Memory | 10th Gen Intel Core i9/i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 Intel Core i5/i3/Pentium/Celeron processors: 2933/ 2800/ 2666/ 2400/ 2133 MHz Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Maximum Memory | 64GB |
Graphics | |
| Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b |
Connector & Ports | |
| HDMI | 1 x HDMI 1.4b |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| LAN Port (s) | Realtek RTL8111H |
| Supported Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s) |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
Asus Prime H410M-CS DDR4 10th Gen Intel 1200 Socket Micro ATX Motherboard
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime H410 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. An H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. Prime H410 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look. Intelligent design and premium hardware create audio quality, unlike anything you've ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.
