Key Features
Model: DS-7104NI-E1/Q1/M
H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming & 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
HDMI and VGA simultaneous output
Audio and Video | |
IP Camera Input | 4-ch Up to 4 MP resolution |
Display | |
Resolution | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Decoding Capacity | 1-ch @ 6 MP / 4-ch @ 1080p |
Recording | |
Record Mode | H.265+/H.265/ H.264+/H.264 |
Network | |
Ethernet Port | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
Network Function | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP |
Storage | |
Internal HDD | Up to 6TB capacity for each disk |
eSATA | 1 SATA interface |
Auxiliary Interface | |
USB | 2 × USB 2.0 |
Power | |
Power Supply | 12 VDC |
Power Consumption | ≤ 10W |
Construction | |
Dimensions | 260 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
Net Weight | ≤ 1 kg (2.2 lb) |
Warranty | |
Manufacturing Warranty | 1 Year |

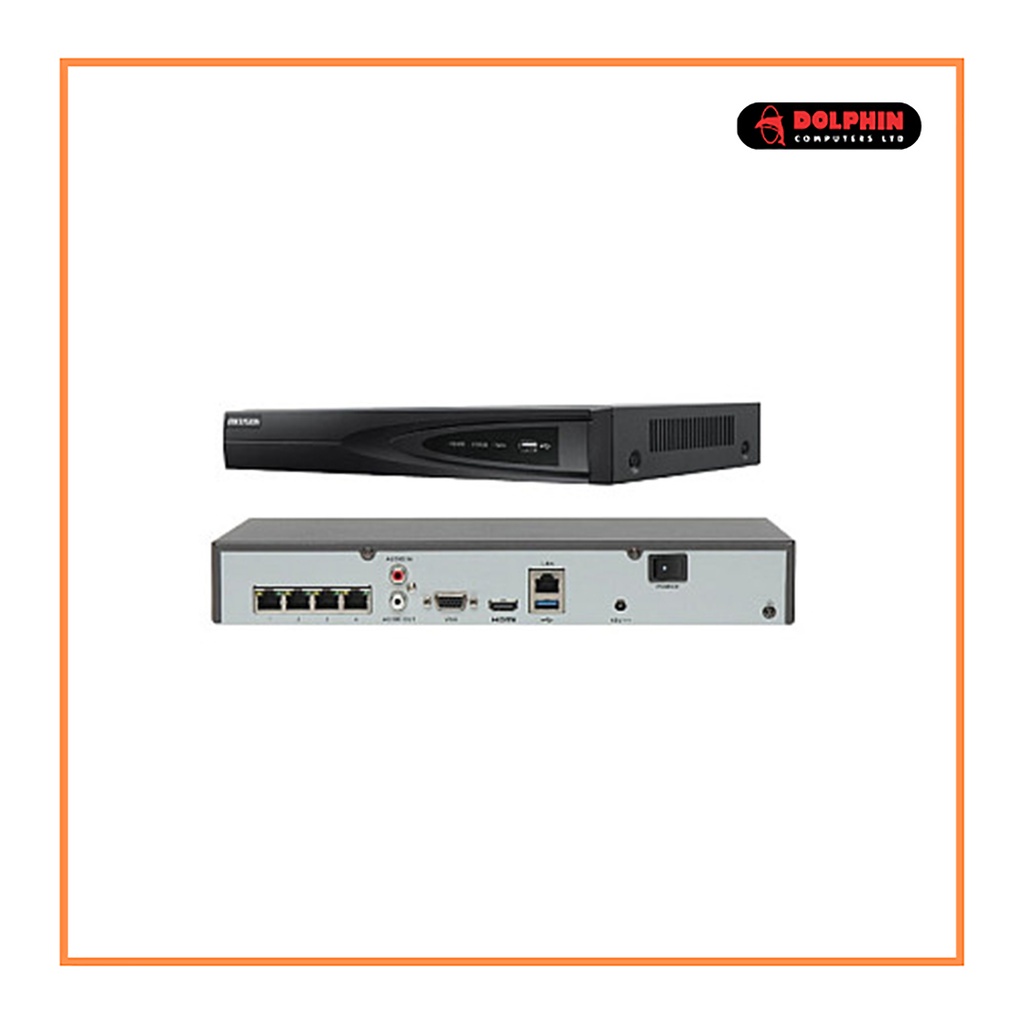

The Hikvision DS-7104NI-Q1/M 4 Channel NVR comes with H.265+/H.265/H.264+/H.264 video compression. This Network Video Recorder offers up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth. It supports up to 4-ch network camera inputs. It has up to 4-ch 1080p decoding capability. This NVR comes with HDMI and VGA simultaneous output. It supports output resolution of 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, and 1024 × 768/60Hz. It is also compatible with third-party network cameras. The Hikvision DS-7104NI-Q1/M comes with 1 SATA interface and it supports up to 6TB capacity. It has 2 × USB 2.0. The Hikvision DS-7104NI-Q1/M 4 Channel NVR comes with a 1-year warranty.
