Key Features
Model: AG400 PLUS
Fan Dimensions: 120×120×25 mm
Fan Speed: 500~2000 RPM±10%
Fan Airflow: 75.89 CFM
Bearing Type: Hydro Bearing
Key Features | |
Fan Speed | 500~2000 RPM±10% |
Fan Airflow | 75.89 CFM |
Noise | ≤31.6 dB(A) |
Air Pressure | 2.53 mmAq |
Connector | 4-pin PWM |
Others | Heatpipe: Ø6 mm×4 pcs Bearing Type: Hydro Bearing Fan Rated Voltage: 12 VDC Fan Rated Current: 0.17 A Fan Power Consumption: 2.04 W |
Physical Specification | |
Dimension | Product Dimensions: 125×107×150 mm Heatsink Dimensions: 120×92×150 mm Fan Dimensions: 120×120×25 mm |
Weight | 748 g |
Supported Sockets | |
Intel | LGA1700/1200/1151/1150/1155 |
AMD | AM5/AM4 |
Warranty Information | |
Warranty | 01-Year |

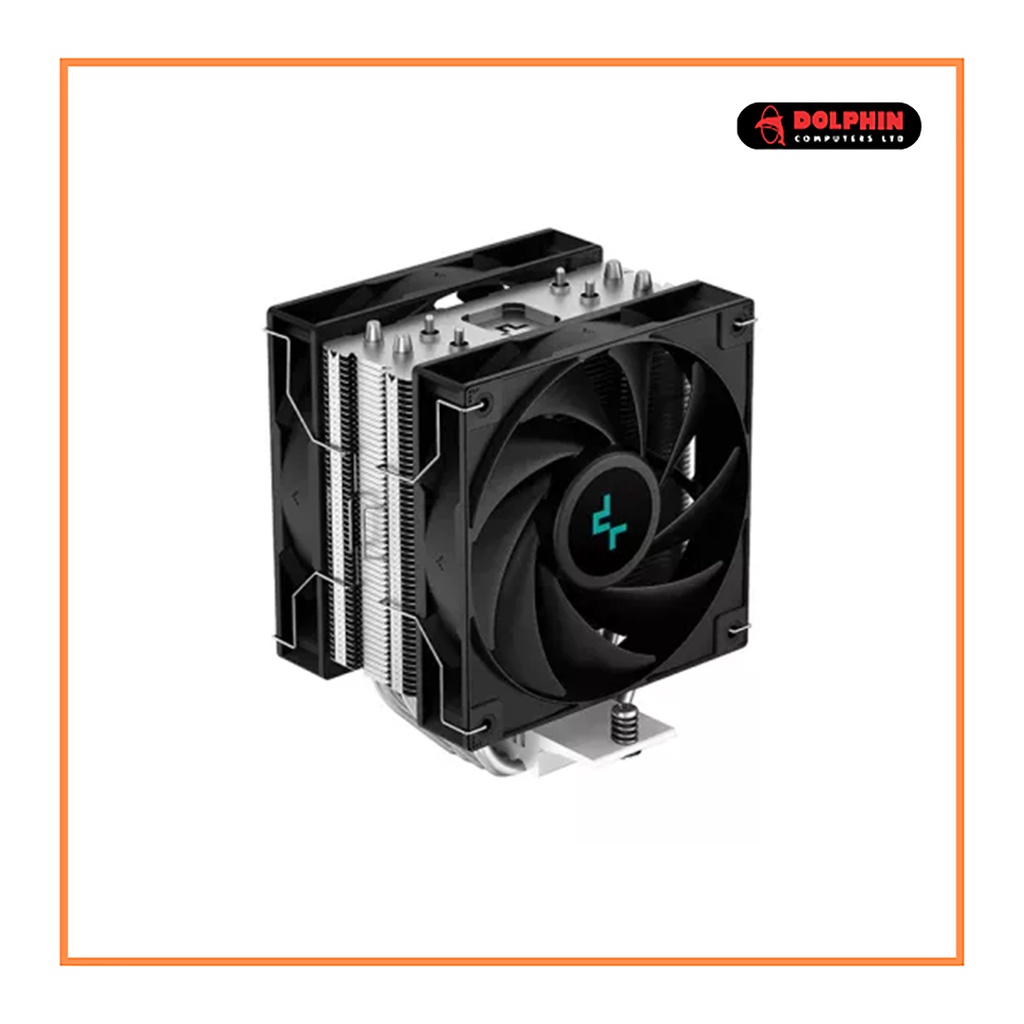

The DeepCool AG400 PLUS is a single tower 120mm CPU cooler that builds on our reputation of high-quality cooling performance while being simplified and efficient. Keep things cool with up to 220W of heat dissipation power and four direct contact heat pipes that swiftly draw heat away from the CPU for improved system performance. With its small design for 100% RAM clearance and a tiny offset for quick and easy installation, the AG400 PLUS retains outstanding hardware compatibility. Its outstanding thermal performance also enables it to deal with severe processing workloads. The heat pipe delivers the highest heat dissipation performance regardless of whether the cooler is in a vertical or horizontal casing by optimizing the interior capillary structure and injecting a precise volume of liquid. This ideal ratio allows for very efficient phase changes across the heat pipe, resulting in decreased thermal resistance throughout a wide TDP range. With a straightforward five-step installation technique that ensures high contact pressure, the accompanying mounting brackets support both Intel and AMD systems. Because of the offset design of the heat pipes, the cooler may be mounted with the fan already attached. It has a variety of clips to support Intel LGA1700/1200/1151/1150/1155 AMD AM5/AM4. The DeepCool AG400 PLUS CPU Cooler comes with a 01-year warranty.
