Key Features
Model: NX292 Elite ARGB
Motherboard Support E-ATX, ATX, Micro-ATX, ITX
Form Factor: Mid Tower
Side Panel: Tempered glass
Pre-install Fan: 4 x 120mm ARGB
Case Type | |
Type | Mid Tower |
Tempered Glass Panel | Left Panel |
Motherboard Support | ATX,Micro-ATX, Mini-ITX, ITX |
External Features | |
Color(s) | Black |
Weight | 4.52 Kg |
Dimensions | 450 x 406 x 206 mm |
Expansion Slots | 7 |
Radiator Support | 120 / 140 / 240 / 280 / 360mm 120mm (Length ≤ 156mm) |
Fan Support | Front: 3 x 120 / 2 x140mm Top: 2 x 120 / 2 x140mm Power Supply Shroud: 2 x 120mm Rear: 1 x 120mm |
Pre- Installed Fans | Front: 3 x 120mm fixed mode ARGB fan Rear: 1 x 120mm regular fan |
Drive Bays | 3.5"/2.5" (convertible) : 2 2.5" : 2 |
I/O Port | USB3.0 x 1, USB2.0 x 2, Power, Reset, Audio/Mic |
Additional Feature | |
PSU | Not Included |
Side Panel | Left: Tempered Glass Right: Steel |
Clearance Space | |
Maximum CPU Cooler Height | 150 mm |
Maximum Graphics Card Length | 320 mm |
Maximum PSU Length | 165 mm |
Warranty | |
Warranty | No warranty |

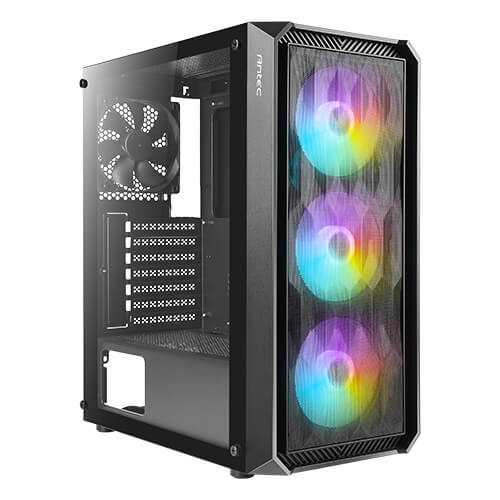

The Antec NX292 Elite is a mid-tower ARGB Gaming Case from Antec. The NX292 Elite mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and 3 x 120mm fixed mode RGB fans in the front and 1 x 120mm fan in the rear. With support for up to a 360 mm liquid cooling radiator in front, the NX292 Elite is easy to build and easy to cool. It is a mid-tower black gaming casing made with SPCC and Plastic. It supports E-ATX, ATX, Micro-ATX, and ITX Motherboards. It has a Tempered Glass side panel. It has 2 Internal 2.5" Drive bays, and the 3.5" HDD and 2.5" SSD (convertible) are 2 and 1. The number of Expansion slots is 7. The front port consists of Power, Reset, USB 2.0 x 2, USB 3.0 x 1, and a headphone/Mic Combo Jack. The Cooling System of this casing is a case fan. It supports 120 and 140-mm case cooler fans. This casing can house 120, 140, 240, 280, and 360 mm. This includes 3 x 120mm fixed mode RGB fans in the front and 1 x 120mm fan in the rear, which are preinstalled. Maximum Graphics Card Support is up to 320 mm. CPU Cooler Support is Up to 155 mm. The PSU Support is Up to 165 mm (with HDD) and up to 300 mm (without HDD). The Dimensions of this casing are 438 x 193 x 463 mm, and the weight is 3.66 Kg.
