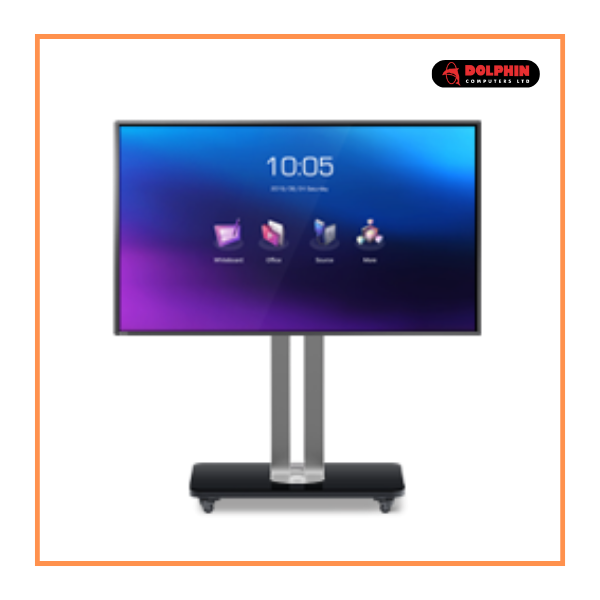

Horion 65M5A All in one Interactive Flat Panel

http://www.dolphin.com.bd/web/image/product.template/7062/image_1920?unique=8985a1f

Key Features:

Brand: Horion
Model: 65M5A
Display: 64.53" inch
Processor: Intel Core-i5
Ram: 4GB DDR-4
Storage: 128 GB (M.2)
OS: Android 8
To Know More: 01792093170

Call for Price
Share :
Terms and Conditions

Horion 65M5A All in one Interactive Flat Panel price in Bangladesh

Find Horion 65M5A All in one Interactive Flat Panel price in Bangladesh. Find also other Interactive Flat Panel from our website. You will get free home delivery or pickup from our showroom.

Panel

BrandHorion
LCD Size Diagonal64.53"
Panel typeD-LED
Panel Resolution3840*2160（UHD）
Brightness (typ)/(min)450cd/m²
Contrast Ratio(typ)1300:1
Response Time(ms)6ms
Aspect Ratio16:9
Pixel pitch0.496mm*0.372mm
Refreshing frequency60Hz
Viewing angle178°(H) / 178°(V)
Color gamut (x% NTSC)65%
View area1428.48mm*803.52mm
Display colors1.07B(10bit)
Life time30,000 hrs

Camera

Pixel13M
FOVDIAGONAL 78°
Array Size

MJPEG:

3840*2160(12fps),4139*3104(8fps)

1280*720(30fps),1920*1080(30fps)

Touch System

Touch technologyInfra-red
Glass4mm AG Toughened glass
Touch Resolution32767*32767
Multi-Touch20 Points
Touch AccuracyMore than 90% of the touch area of plus or minus 1mm
Response Time<10ms
Minimum Touch Object≥1.6mm (Single-point) ；≥3mm (Multipoint)
Input ModeFinger or Pen
Output FormHID Standard
Theory ClicksUnlimited

Supportive Operating System

Built-in systemAndroid
OPS systemWindows 10

Array Mic

MIC Category8pcs omnidirectional silicon wheat
Pick-up Distance8M
Pick-up Angle 180°

Android System

Android VersionAndroid 8.0
CPUARM Cortex A73 + A53
CPU Working Frequency1.5GHz
CPU CoreQuad Core
GPUMali-G51
Flash +ROM3G DDR4 + 64GB

Connectivity

WIFISupport
BluetoothSupport

Power

Voltage100 V ~ 240 V/AC, 50/60 Hz
Machine Power Consumption170W (without ops)
OPS Power18V(DC)/5A
Standby Power Consumption≤0.5W
Power（AC）input1
Audio Power2 X 15W (front-facing)
Interface TypeUSB2.0 at full speed
Working VoltageDC+5V±5%
Power Consumption≤2W

Slot-in OPS

ProcessorIntel Core-i5
RAM4GB
Storage (SSD)M.2 128GB

Environment

Working Temperature0 ~ 40 ºC
Storage Temperature-10 ~  60°C
Working Humidity20% ~ 80% RH
Storage Humidity10% ~ 80%
Image ModelStandard Computer Gorgeous Bright, Soft Nature、Exercise、Game、Automatic、Users

The longest service

time (Hour*Day)		18Hours*7days





Structure

Net Weight43.5Kg±1.5Kg
Gross Weight56Kg±1.5Kg (Heavy Carton)
Product Size (mm)
(W x D x H)		1511.95mm*98.6mm*887mm
Package Size (mm)
(W x D x H)		1660mm*245mm*1045mm (Heavy Carton)
VESA4-M8 Screw Hole 600mm*400mm

Housing Material (Surface Frame

/Back Cover）		Aluminum/Sheet Metal

Housing Color (Surface Frame

/Back Cover）



Gray (White)/Black

Interface

Input Ports
  • VGA *1
  • VGA Audio in *1
  • LAN *2
  • Android USB *2
  • PC Audio In * 1
  • S/PDIF Out *1
  • HDMI In *2
  • HDMI Out *1
  • USB for Touch *1
  • USB2.0 *2
  • DP In * 1
  • Audio OUT *1
  • Type-c X1
  • RS232 x 1

Accessories

  • Pen X 2
  • Remote Control X1
  • Expansion Screw X8
  • USB disk X1

Accessories

  • User Manual *1
  • Certificate of quality/Warrantycard *1
  • HDMI Cable *1
  • Touch Cable *1
  • Power Cord *1
  • USB Extension Cable *1
  • User Manual * 1
  • Certificate of quality/Warrantycard *1
  • HDMI Cable * 1
  • Touch Cable * 1
  • Power Cord * 1
  • USB Extension Cable *1



Certification, Test Report,  Authorization letter

CertificationISO, CE, Telecommunications
Test ReportCE, CB, IEC, Japan, MIC
Authorization LetterManufacture’s authorization letter
