Price:
19,500.00 ৳

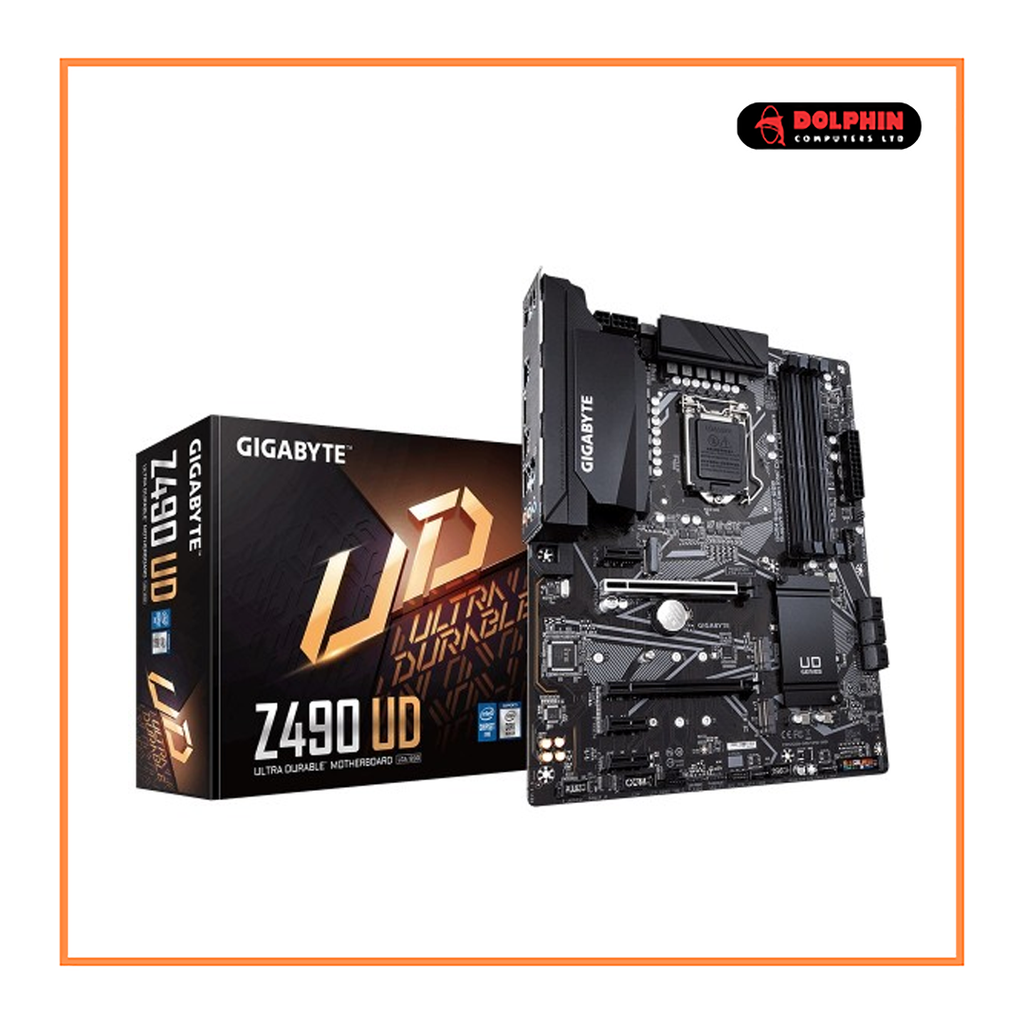

Gigabyte Z490 UD Ultra Durable ATX Motherboard
Brand: Gigabyte
Model: Gigabyte Z490 UD
Chipset: Intel Z490 Express
Intel Socket LGA1200 for 10th Gen Processors
4 x DIMM, Max. 128GB DDR4
CrossFire Supported
Tags :
| Supported CPU |
|
|---|---|
| Chipset | Intel® Z490 Express Chipset |
| Supported Memory | Intel® Core™ I9/I7 Processors: Support For DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Modules Intel® Core™ I5/I3/Pentium®/Celeron® Processors: Support For DDR4 2666/2400/2133 MHz Memory Modules 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| RAM Type | DDR4 |
| FromFactor | ATX Form Factor; 30.5cm X 24.4cm |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 4 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X Q-Flash Plus Button 6 X SATA 6Gb/S Connectors 2 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB 3.2 Gen 1 Header 1 X USB 2.0/1.1 Header 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 2 X Thunderbolt™ Add-In Card Connectors 1 X Serial Port Header 1 X Clear CMOS Jumper |
| Audio | Realtek® ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel * To Configure 7.1-Channel Audio, You Need To Open The Audio Software And Select Device Advanced Settings > Playback Device To Change The Default Setting First. Please Visit GIGABYTE's Website For Details On Configuring The Audio Software. Support For S/PDIF Out |
| Expansion Slots |
|
| Operating System | Support For Windows 10 64-Bit |
| HDMI | 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@30 Hz |
| LAN | Realtek® GbE LAN Chip (1000 Mbit/100 Mbit) |
| Graphics |
|
| USB | 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 7 X USB 3.2 Gen 1 Ports (5 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) |
| Brand | Gigabyte |
Gigabyte Z490 UD Ultra Durable ATX Motherboard Price in Bangladesh
Buy your required products Gigabyte Z490 UD Ultra Durable ATX Motherboard Price in Bangladesh. Gigabyte Motherboard Best Price from our online and also you will get free home delivery or pickup from our showroom.
Gigabyte Z490 UD 10th Gen Ultra Durable ATX Motherboard. GIGABYTE UD series motherboards use an 11+1 phase digital PWM + Low RDS(on) MOSFETs design to support the latest 10-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4500MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. For most prosumers and gamers, high bandwidth storage and high-performance graphics card are critical for their applications. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0-grade hardware design. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. With Z490 UD Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z490 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. Z490 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors for offering stable power supply while CPU overloading. The BIOS is essential for users during the initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
