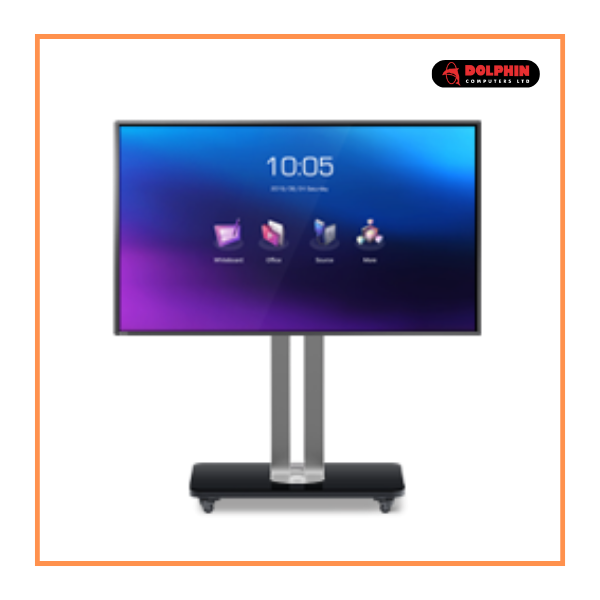

Horion 86M5A All in one Interactive Flat Panel

http://www.dolphin.com.bd/web/image/product.template/7066/image_1920?unique=9de347a

Key Features:

Brand: Horion
Model: 86M5A
Display: 86 Inch
Processor: Intel Core-i5
Ram: 8GB DDR-4
Storage: 128 GB (M.2)
OS: Android, Windows 10
To Know More: 01792093170

Call for Price
Share :
Terms and Conditions

 Horion 86M5A All in one Interactive Flat Panel price in BD

Find Horion 86M5A All in one Interactive Flat Panel price in Bangladesh. Find also other Interactive Flat Panel from our website. You will get free home delivery or pickup from our showroom.

Panel

BrandHorion
LCD Size Diagonal85.6"
Panel typeD-LED
Panel Resolution3840*2160（UHD）
Brightness (typ)/(min)400cd/m²
Contrast Ratio(typ)1200:1
Response Time(ms)8ms
Aspect Ratio16:9

Camera

Pixel13M
FOVDIAGONAL 78°
Array Size

MJPEG:

3840*2160(12fps),4139*3104(8fps)

1280*720(30fps),1920*1080(30fps)

Touch System

Touch technologyInfra-red
Glass3.2mm AG Toughened glass
Touch Resolution32767*32767
Multi-Touch20 Points
Touch AccuracyMore than 90% of the touch area of plus or minus 1mm
Response Time<08ms
Minimum Touch Object≥1.6mm (Single-point) ；≥2mm (Multipoint)
Input ModeFinger or Pen
Output FormHID Standard
Theory ClicksUnlimited

Supportive Operating System

Built-in systemAndroid
OPS systemWindows 10

Array Mic

MIC Category8pcs omnidirectional silicon wheat
Pick-up Distance8M
Pick-up Angle 180°

Android System

Android VersionAndroid
CPUARM Cortex A73 + A53
CPU Working Frequency1.5GHz
CPU CoreQuad Core
GPUMali-G51
Flash +ROM3G DDR4 + 64GB

Connectivity

WIFISupport
NFCSupport
BluetoothSupport

Power

Voltage100 V ~ 240 V/AC, 50/60 Hz
Machine Power Consumption≤380W (without ops)
OPS Power18V(DC)/5A
Standby Power Consumption≤0.5W
Power（AC）input1
Audio Power2 X 15W (front-facing)

Slot-in OPS

ProcessorIntel Core-i5
RAM8GB
Storage (SSD)M.2 128GB

Environment

Working Temperature0 ~ 40 ºC
Storage Temperature-10 ~  60°C
Working Humidity20% ~ 80% RH
Storage Humidity<95% RH
Image ModelStandard Computer Gorgeous Bright, Soft Nature、Exercise、Game、Automatic、Users

The longest service

time (Hour*Day)		18Hours*7days





Structure

Net Weight68Kg±1.5Kg
Gross Weight89Kg±1.5Kg(Heavy Carton)
Product Size (mm)
(W x D x H)		1967.65mm*87.28mm*1160.15mm
Package Size (mm)
(W x D x H)		2140mm*280mm*1340mm(Heavy Carton)
VESA4-M8 Screw Hole 800mm*600mm

Housing Material (Surface Frame

/Back Cover）		Aluminum/Sheet Metal

Housing Color (Surface Frame

/Back Cover）



Gray (White)/Black

Interface

Input Ports
  • VGA *1
  • VGA Audio in *1
  • LAN *1
  • Android USB *2
  • PC Audio In * 1
  • S/PDIF Out *1
  • HDMI In *3 (OPS *1)
  • HDMI Out *1
  • USB for Touch *1
  • USB2.0 *2
  • DP In * 1
  • Audio OUT *1
  • Type-c X1
  • RS232 x 1

Accessories

  • Pen X 1
  • Remote Control X1
  • Expansion Screw X8
  • USB disk X1

Accessories

  • User Manual *1
  • Certificate of quality/Warrantycard *1
  • HDMI Cable *1
  • Touch Cable *1
  • Power Cord *1
  • USB Extension Cable *1
